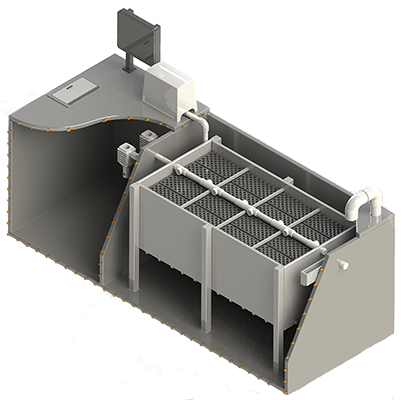

ECOPOD Commercial Advanced Wastewater Treatment Unit

ECOPOD
ECOPOD Logo

ECOPOD Commercial Advanced Wastewater Treatment Units offer treatment capacities from 1,500 to 250,000 gallons per day in pre-engineered treatment plants for commercial or decentralized wastewater treatment needs.

Request a Commercial System Quote › Wastewater Plant Selection Tool

Contact an Expert › Manuals, Guides & CAD Details ›

Specifications:

ECOPOD Advanced Wastewater Treatment Units are manufactured to specifications according to wastewater flow requirements available in the following models:

ECOPODs in Vertical Cylindrical Tanks

  • Model E200-VC: 2,000 gallons per day
  • Model E300-VC: 3,000 gallons per day
  • Model E400-VC: 4,000 gallons per day
  • Model E450-VC: 4,500 gallons per day
  • Model E600-VC: 6,000 gallons per day
  • Model E800-VC: 8,000 gallons per day
  • Custom flow models also available

ECOPODs in Horizontal Tanks

  • Model E200: 2,000 gallons per day
  • Model E300: 3,000 gallons per day
  • Model E400: 4,000 gallons per day
  • Model E500: 5,000 gallons per day
  • Model E600: 6,000 gallons per day
  • Model E800: 8,000 gallons per day
  • Model E1000: 10,000 gallons per day
  • Larger flow models also available

Features:

  • Oxygen is pumped into the system allowing the bacteria thrive and grow in much greater numbers than would occur naturally. This “overpopulation” of bacteria speeds the process of breaking down the sewage, making it safe for release into the environment.
  • ECOPOD Units significantly reduce BOD, TSS, fecal coliform, and nutrients in the wastewater.
  • Nitrification and denitrification occur in a single tank.
  • Features a fixed film process which is characteristically stable, reliable, and sturdy. Fixed film is a preferred treatment process for onsite wastewater treatment systems.

Case Studies:

See More Case Studies

Benefits:

  • The fixed film process provides a robust solution suitable for continuous or intermittent use
  • Flexible and easy installations in tanks we supply or in 3rd party tanks
  • Flexible design approach provides for plants to be installed below, above or at-grade
  • With no mechanical parts internal to the unit, the ECOPOD is easy to maintain
  • Designed specifically to minimize sludge production for fewer pump out cycles
  • Low life cycle costs with minimal maintenance requirements
  • Support through a dedicated team of engineers who act like an extension of your own team
  • Wide range of solutions from 500 to 250,000 GPD
