Vortex Filtration

Vortex Filtration

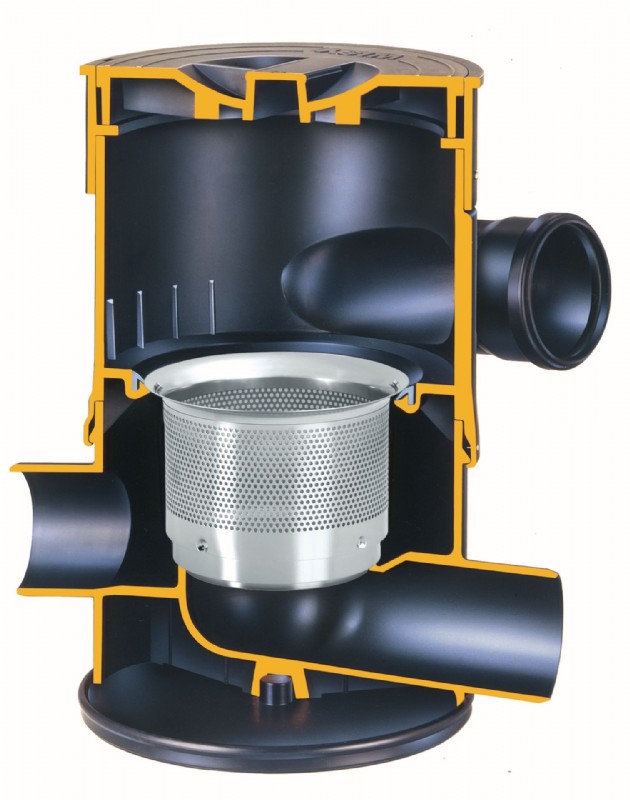

A self-cleaning filtration device circulates water through its internal housing until reaching a stainless-steel sieve basket capable of filtering water up to 280 microns before passing debris-free rainwater to the tank. Leaves, pebbles, and other forms of debris simply fall through the bottom of the housing and are discharged to daylight elsewhere on the homeowner’s property.

Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›

Specifications:

Part Number
WF1011

Description
WFF150 WISY Vortex Rainwater Filter

Rooftop Capacity
Up to 5,500 sq. ft.

Pipe Diameter
6-inch (inlet/overflow outlet)
4-inch (tank storage outlet)

Download the WF1011 Installation and Operation Instructions›



Specifications:

Part Number
WF2011

Description
WFF100 WISY Vortex Rainwater Filter

Rooftop Capacity
Up to 2,100 sq. ft.

Pipe Diameter
4-inch (inlet/outlet)

Download the WF2011 Installation and Operation Instructions›
