System Elements
-
Vortex Filtration View Products
-
Smoothing Inlet View Products
-
Potable Tank Storage View Products
-
Floating Intakes and Pumps View Products
-
The Multi-Siphon Overflow Device View Products
-

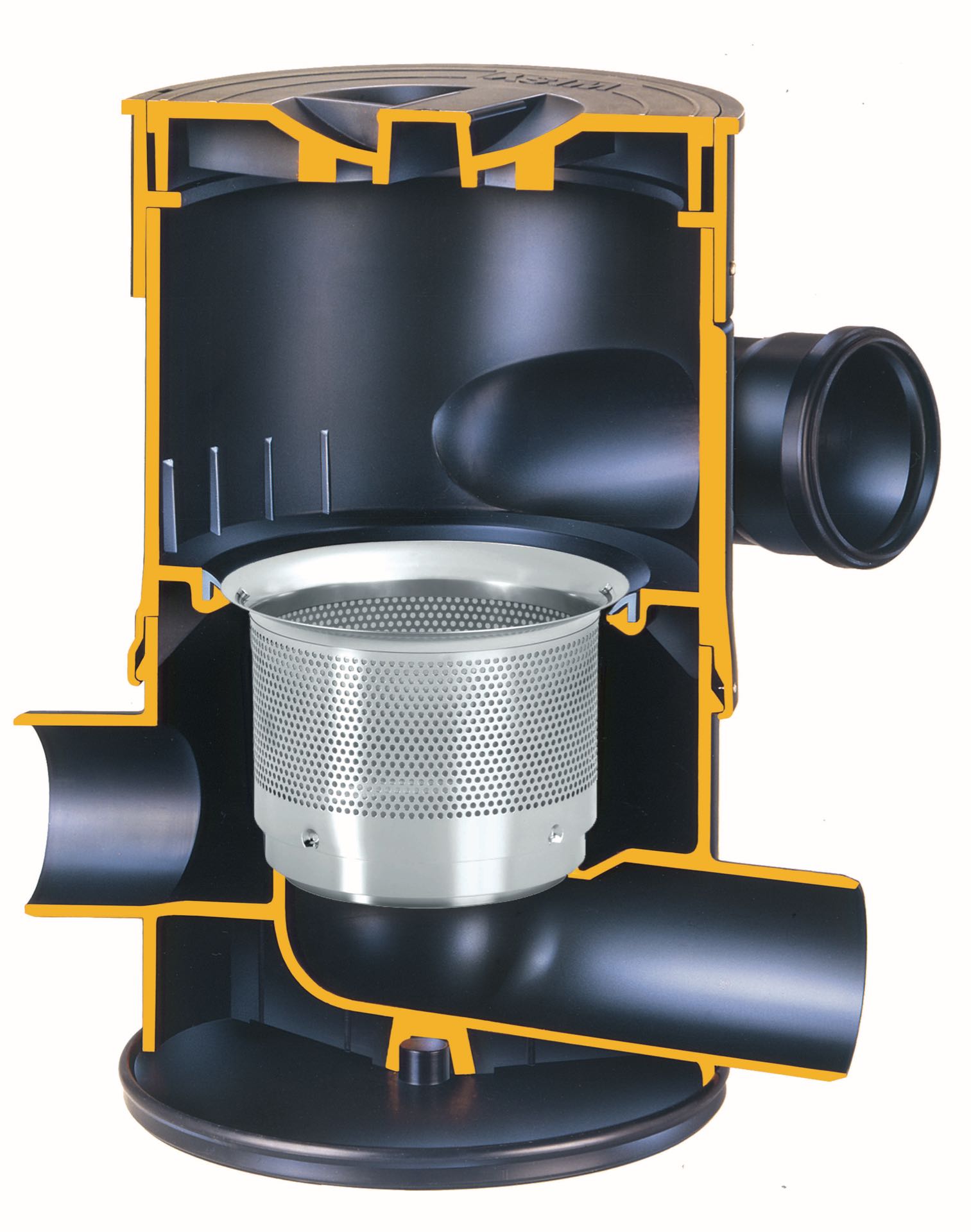

Vortex Filtration
A self-cleaning filtration device circulates water through its internal housing until reaching a stainless-steel sieve basket capable of filtering water up to 280 microns before passing debris-free rainwater to the tank. Leaves, pebbles, and other forms of debris simply fall through the bottom of the housing and are
discharged to daylight elsewhere on the homeowner’s property. -

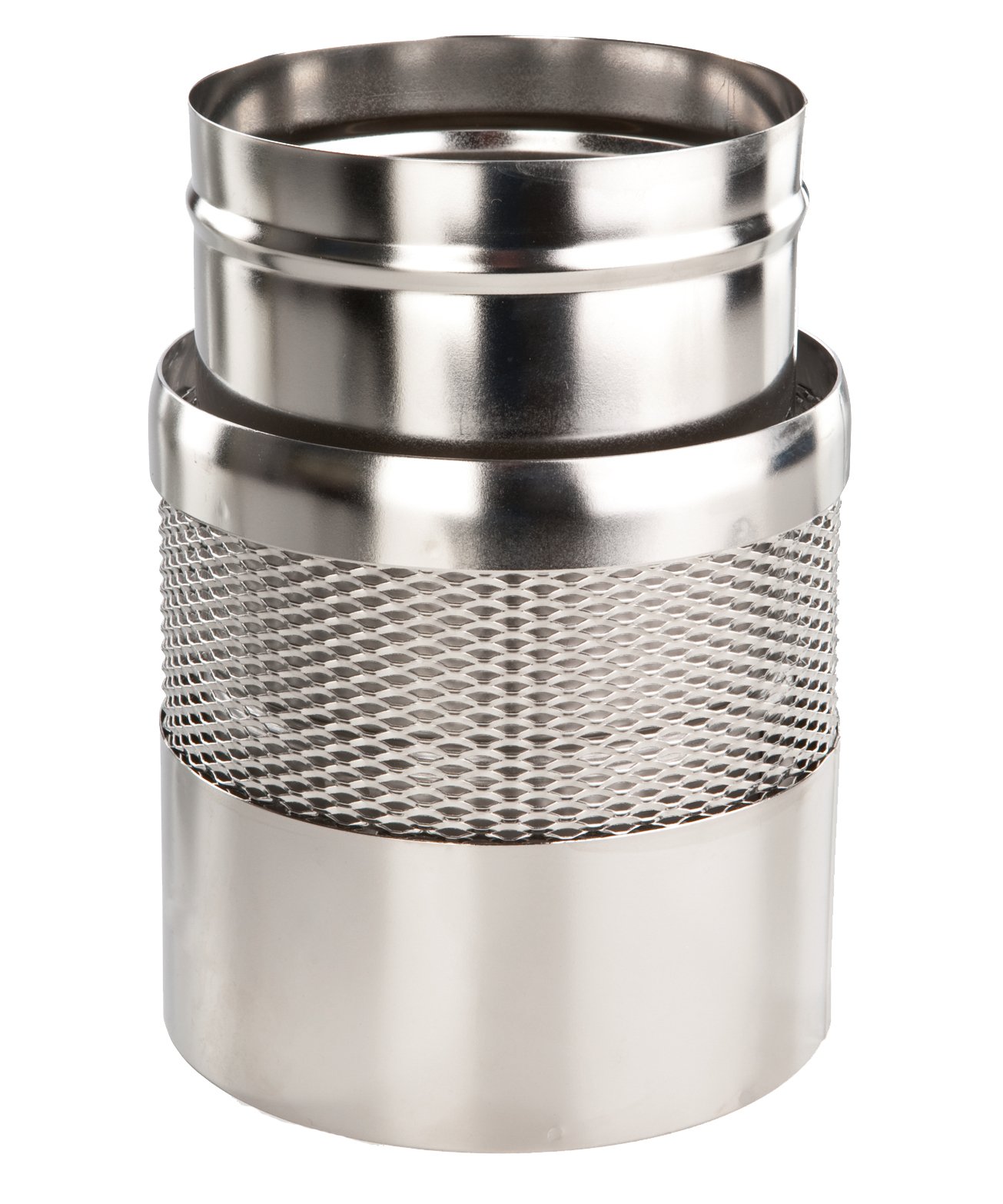

Smoothing Inlet
A stainless-steel smoothing inlet eases incoming flows to prevent accumulated sediment inside of the tank from becoming suspended. Installed with a 90-degree elbow, the smoothing inlet is connected to either 4” SDR 35 or S&D pipe. Gluing the device to the pipe is not required as it will be held in between the floor of the tank and
pipe. -

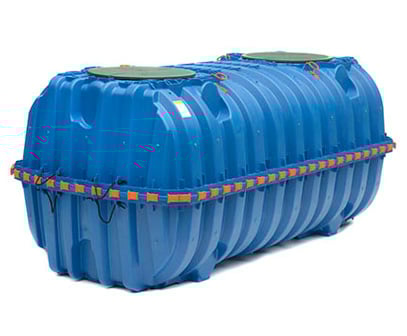

Potable Tank Storage
Low profile, Injection-molded polypropylene tanks are watertight and easy to install. Reinforced structural ribbing and fiberglass support posts provide exceptional strength and durability when installed correctly. Potable and non-potable tank options are available.
-

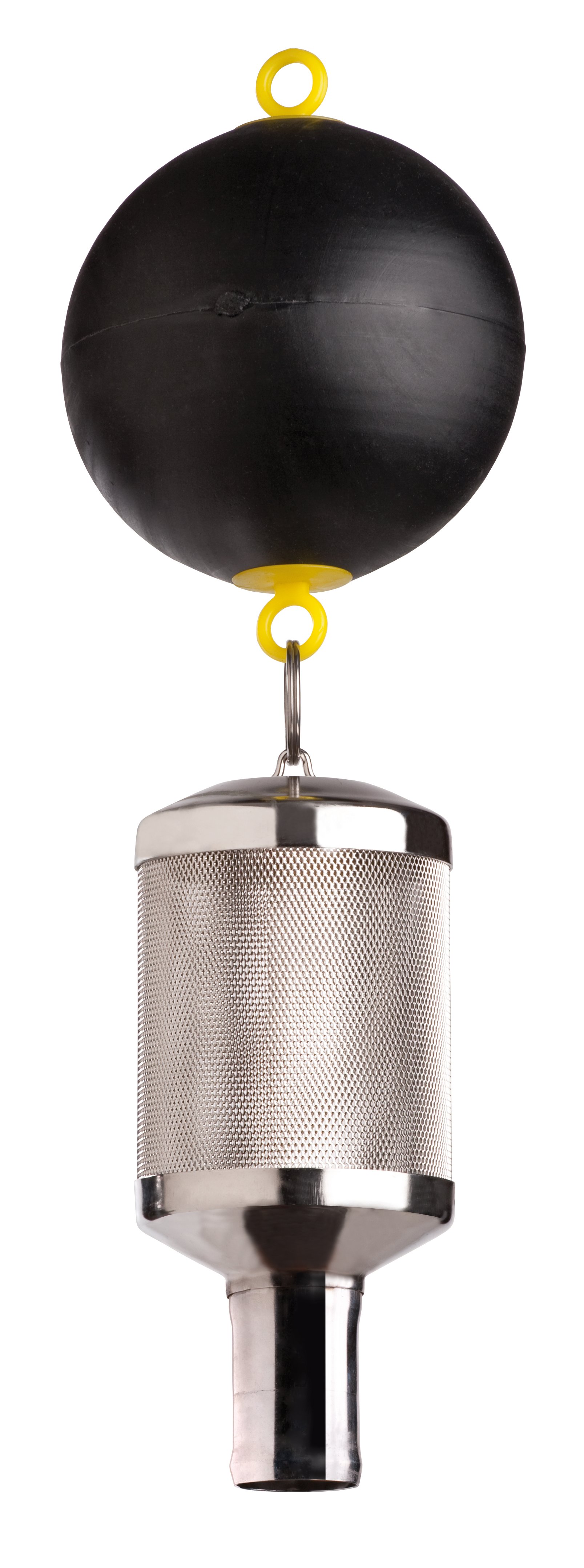

Floating Intake & Water Pump
A floating ball suspends the stainless-steel mesh filter just below the surface positioning it in the optimal location: the clarified zone that exists between floating particulates near the surface and settled particulates at the bottom of the tank.
-

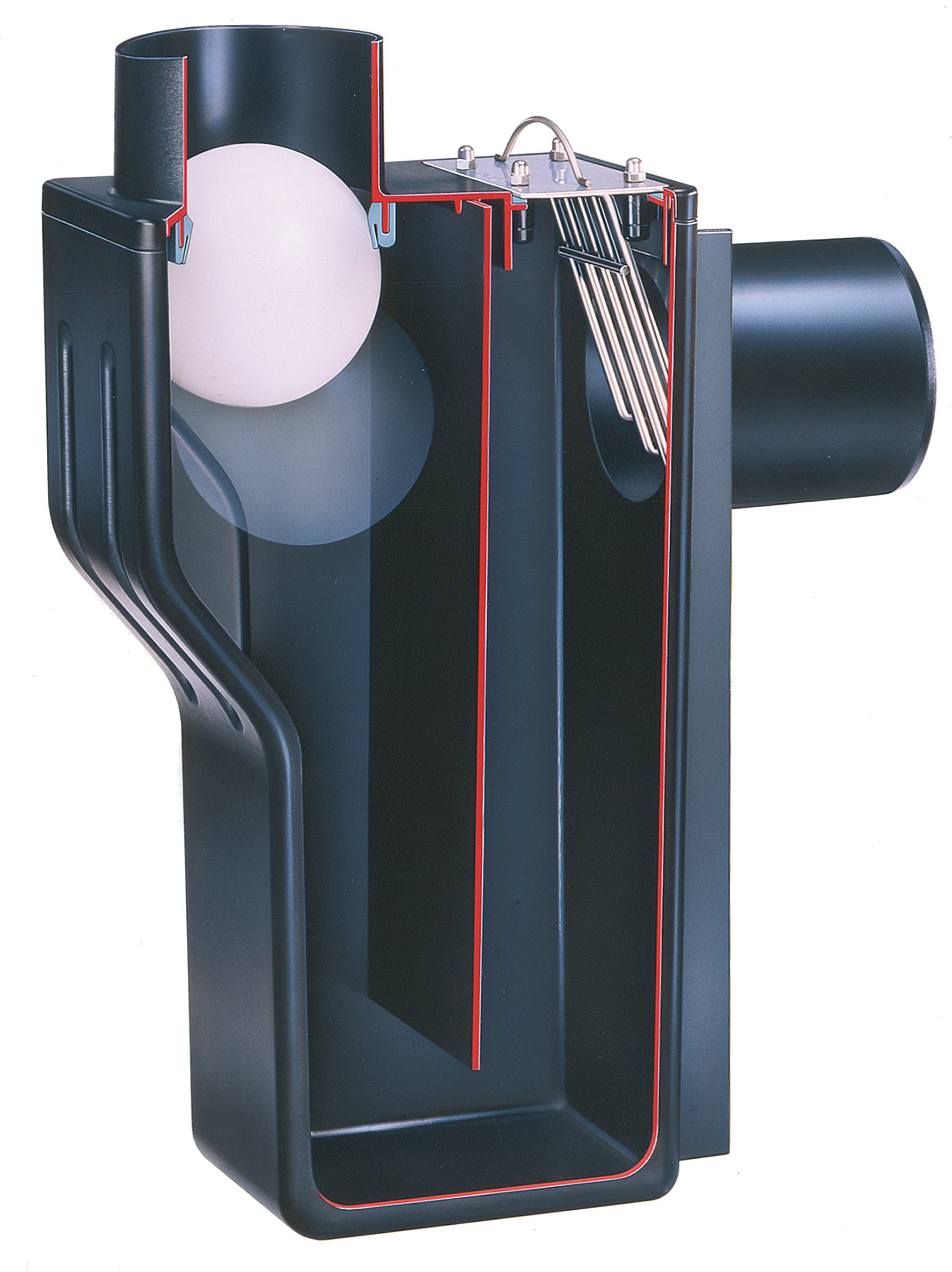

The 4-Inch Multi-Siphon Overflow Device
The Multi-Siphon Overflow Device siphons particulate-laden surface water
through the overflow device and out of the storage vessel. It also prevents storm drain odors and rodents from reaching the inside of the tank.
