Grease Interceptor GIT-540
Infiltrator’s GIT-540 is the industry’s first injection molded gravity grease interceptor.
Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›Specifications:
Size
50.9”W x 50.9"L x 50.5"H
(1293 mm x 1293 mm x 1283 mm)
Weight
246 lbs (112 kg)
Total Capacity
552 gal (2,089 L)
Working Capacity
475 gal (1,799 L)
Burial Depth
Minimum 18" (457 mm)
Maximum 48" (1219 mm)
Benefits:
- Certified as a hydromechanical grease interceptor under ASME A112.14.3.
- Efficiency At Rated Capacity: 97.9%, with a maximum grease capacity of 3,011 pounds (94.7% Overall Efficiency)
- Molded with fiberglass-filled polypropylene that increases durability while maintaining ideal corrosion resistance
- Lightweight thermoplastic design allows for quick and easy job site delivery and installation
- A continuous-loop gasketed mid-seam connection is secured by permanent clips producing a watertight seal between interceptor halves

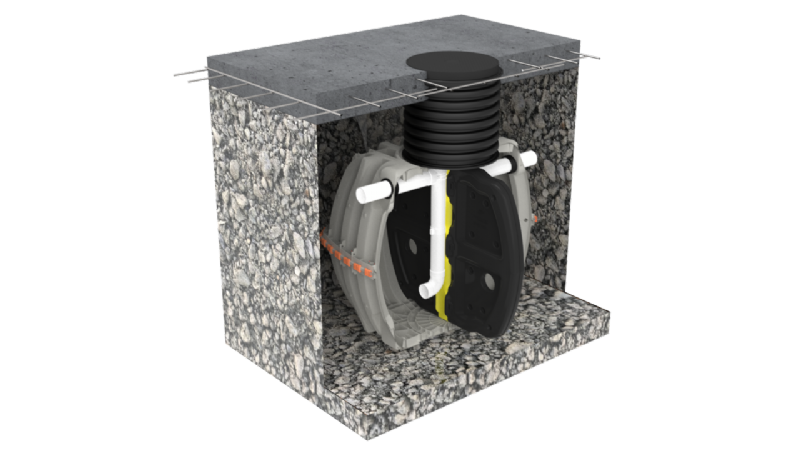

- Burial depths can range between 6-inches and 48-inches depending on the installation type

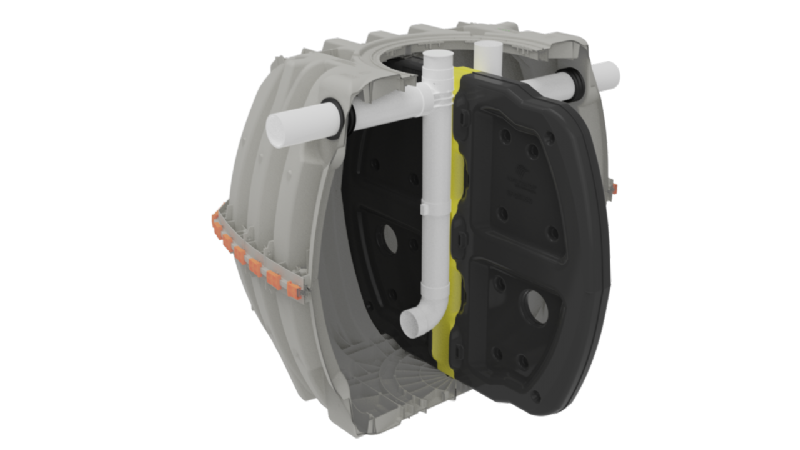

- A solid-tight baffle creates a two-compartment interceptor that prevents fats, oils, and grease (FOG) from short-circuiting across the interceptor
- Traffic-rated (ASSHTO H-20) installations require the use of a steel-reinforced concrete slab
- Traffic rated riser can be achieved with an Infiltrator cast iron lid, dual-wall corrugated pipe (by others), and Infiltrator’s pipe adapter ring. Non-traffic rated installations may use Infiltrator’s EZsnap risers
