Grease Interceptor GIT-1530

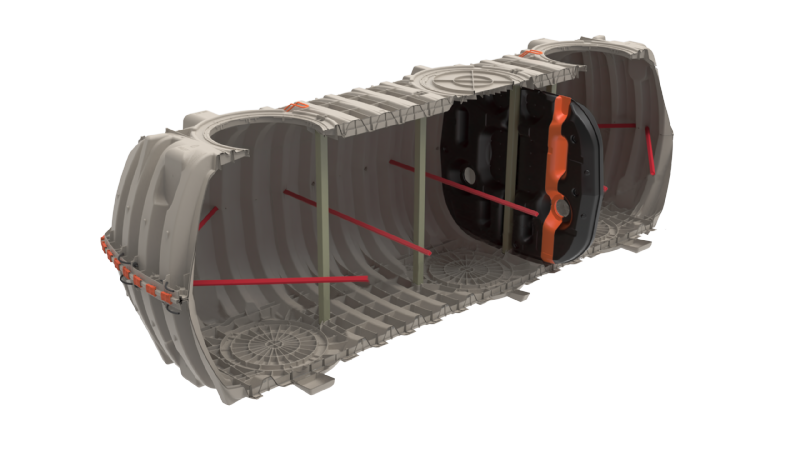

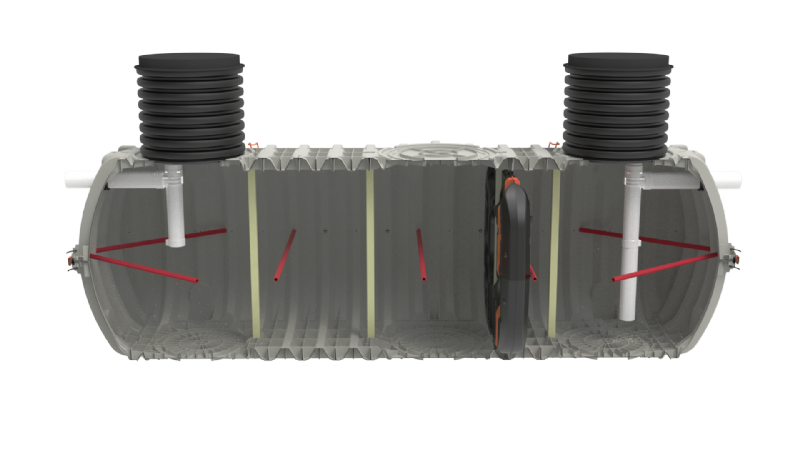

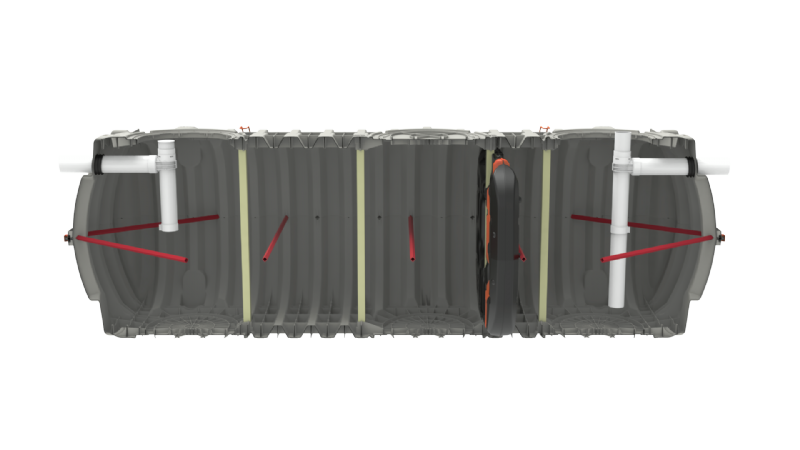

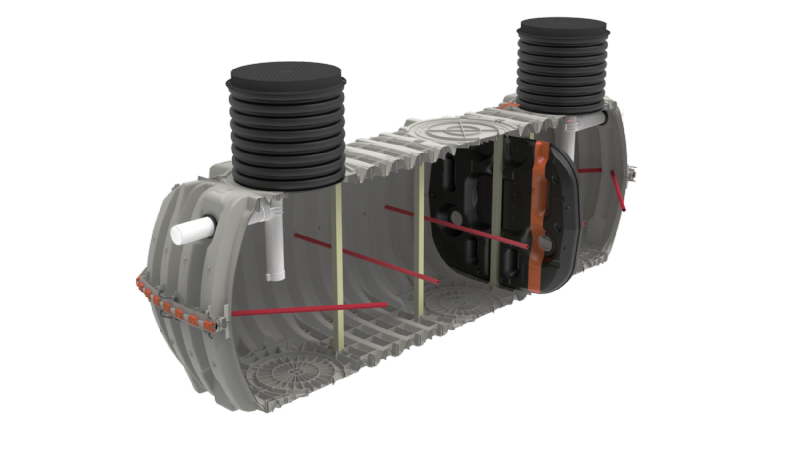

Infiltrator’s GIT-1530 is the industry’s first injection molded gravity grease interceptor. This design produces an easily installed and highly durable below grade interceptor solution. Non-corrosive polypropylene impregnated with fiberglass improves it’s durability beyond Infiltrator’s standard septic tank product line. A dual-wall structural baffle creates a two-chamber solution that prevents solids and FOG from short-circuiting across the interceptor. In compliance with AASHTO H20, the tank is also designed to be installed beneath a traffic rated concrete slab with 24” cast iron covers, Nyloplast inline drains, ADS N-12 Dual Wall Pipe (sold separately), and pipe adapter rings.
Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›Specifications:
Size
50.9”W x 50.9"L x 50.5"H
(1293 mm x 1293 mm x 1283 mm)
Weight
570 lbs (259 kg)
Total Capacity
1787 gal (6765 L)
Working Capacity
1537 gal (5718 L)
Burial Depth
Minimum 18" (457 mm)
Maximum 48" (1219 mm)
Benefits:
- Low profile tank design using structural corrugations and fiberglass supports optimal for below grade installation
- Delivery and handling made quick and easy by the lightweight thermoplastic design
- A continuous gasket mid-seam connection is secured by 86 permanent seam clips which produces a watertight bond between tank halves
- Maximum 48” burial depth with 24” access manholes available

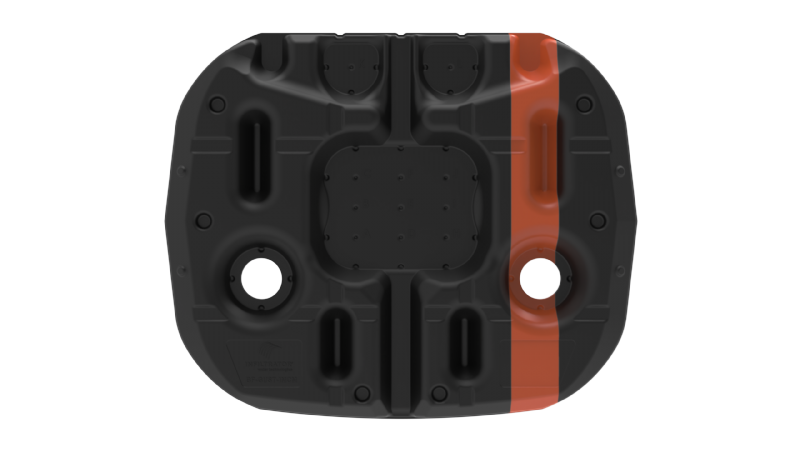

- Dual-wall structural baffle creates a two-chamber tank that prevents solids and grease from short-circuiting across the interceptor

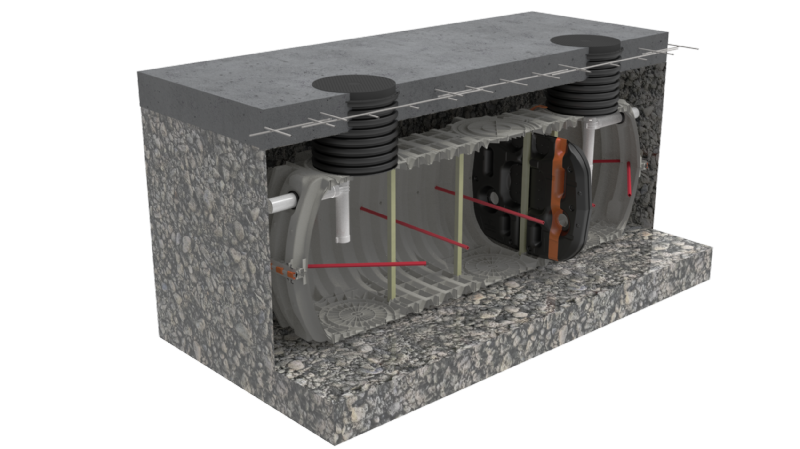

- Traffic Rated AASHTO H20 design incorporates a reinforced concrete pad
- Access manhole design includes H-20 traffic rated 24” cast iron covers, Nyloplast Inline Drains, dual wall corrugated pipe or corrugated PVC pipe and SNAPPAR adapter rings
