Grease Interceptor GIT-1060
Infiltrator’s GIT-1060 is the industry’s first compression molded gravity grease interceptor. This design produces an easily installed and highly durable, below-grade interceptor solution. Non-corrosive polypropylene filled with fiberglass improves its durability beyond Infiltrator’s standard septic tank product line. A dual-wall solid-tight baffle creates a two-compartment solution that prevents fats, oils and grease (FOG) from short-circuiting across the interceptor. Traffic installations (AASHTO H20 rated) achievable with the use of a steel reinforced concrete slab, Infiltrator's Pipe Adaptor Ring, dual wall corrugated pipe (by other), and Infiltrator's cast iron lid.
Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›Specifications:
Size
50.9”W x 50.9"L x 50.5"H
(1293 mm x 1293 mm x 1283 mm)
Weight
410 lbs (215 kg)
Total Capacity
1309 gal (4956 L)
Working Capacity
1111 gal (4207 L)
Burial Depth
Minimum 18" (457 mm)
Maximum 48" (1219 mm)
Benefits:

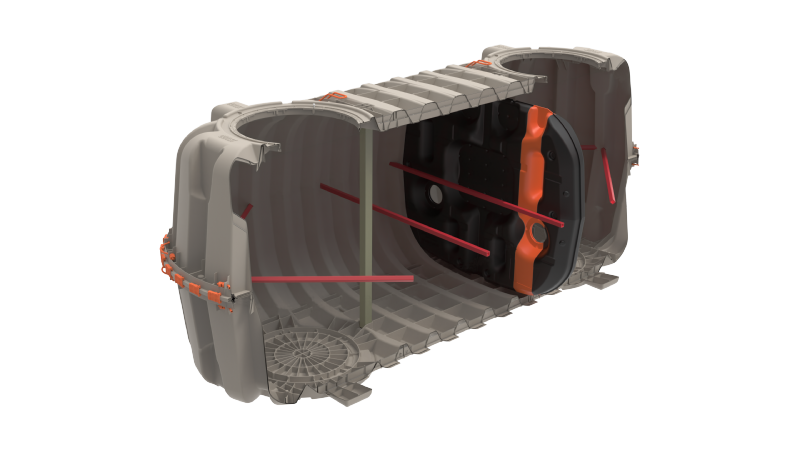

- Low profile tank design using structural corrugations and fiberglass support posts achieve optimal below-grade installation
- Molded using a non-corrosive, fiberglass-filled polypropylene offers greater durability
- Delivery and handling made quick and easy with the lightweight thermoplastic design
- A continuous gasketed mid-seam connection is secured by 64 permanent seam clips that produces a watertight bond between interceptor halves

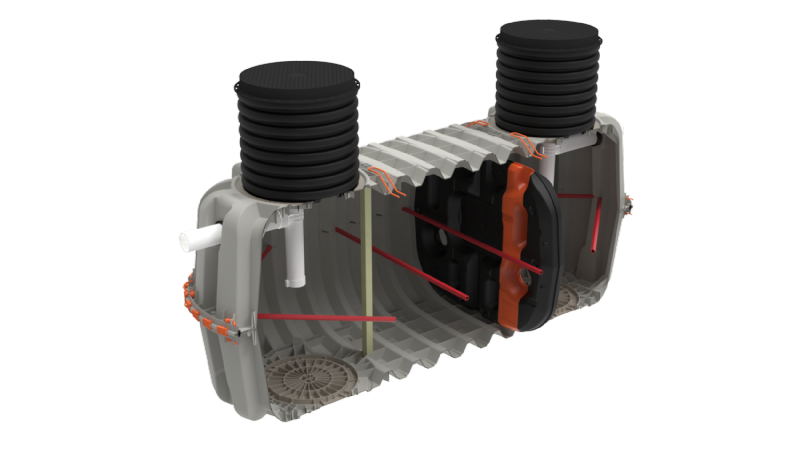

- Maximum 48” burial depth with 24” access manholes available

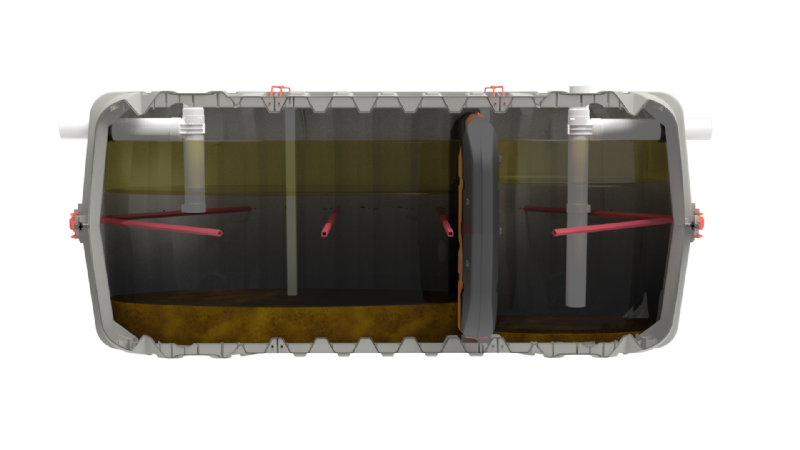

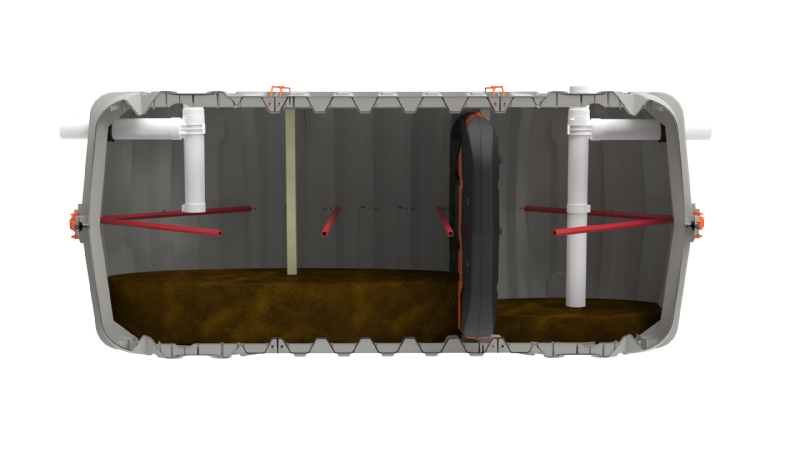

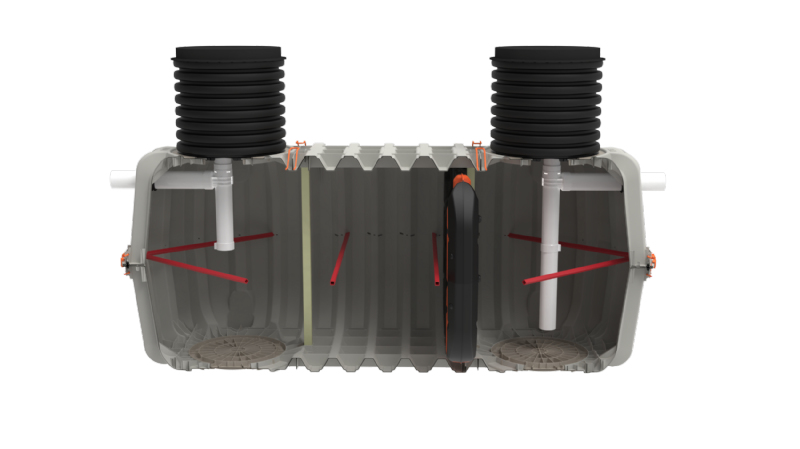

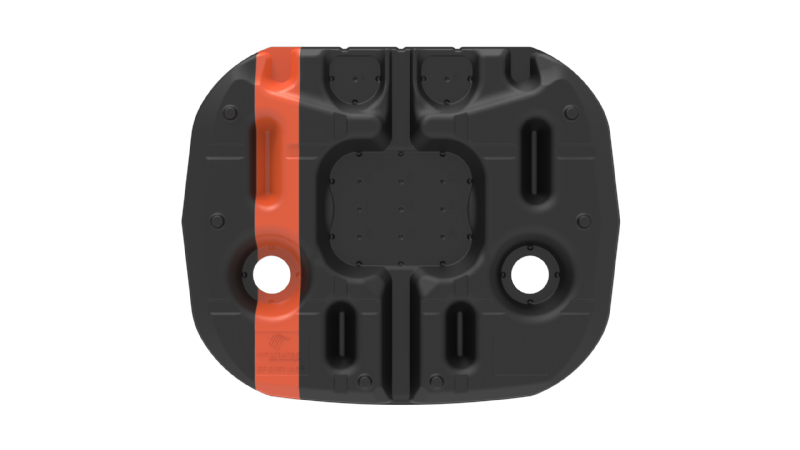

- Dual-wall solid-tight baffle prevents solids and grease from short-circuiting across the interceptor

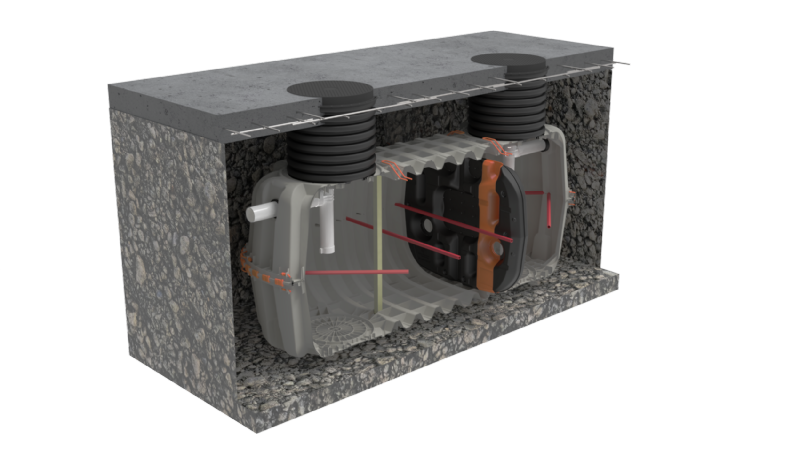

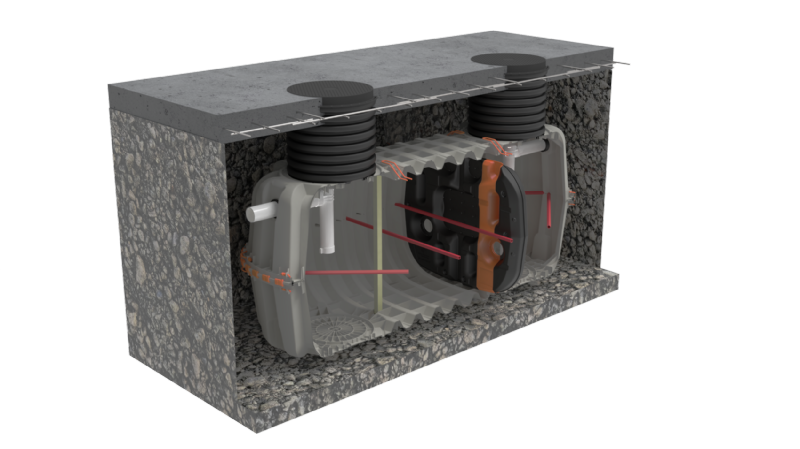

- Traffic installation acheivable with Infiltrator's traffic-rated riser assembly and a reinforced concrete slab
