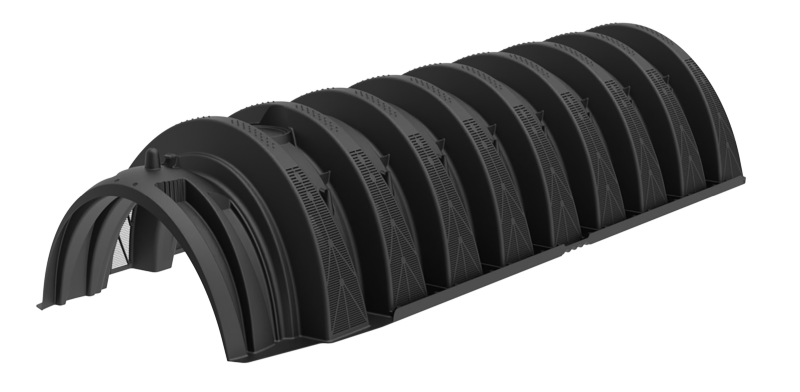

Quick5 Equalizer 36 Chamber
The Quick5® Standard Chamber fits in a 24” wide trench and is ideal for curved or straight systems. It features the patented Contour Swivel Connection™ which permits turns up to 10°, right or left. The MultiPort™ Endcap allows multiple piping options and eliminates pipe fittings. The chamber’s five-foot length provides optimal installation flexibility.
Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›Specifications:
Size
22"W x 65"L x 12"H
(559 mm x 1651 mm x 305 mm)
Effective Length
60" (1524 mm)
Louver Height
10" (2543 mm)
Storage Capacity
42 gal (215 L)
Invert Height
6" (152 mm)
Benefits:
- Advanced contouring connections swivel up to 10°, right or left
- Latching mechanism allows for quick installation
- Compact nesting provides more trench length in an equivalent stack height
- Less chambers needed for faster installation
- Supports wheel loads of 16,000 lbs/axle with 12" of cover
- Certified by the International Association
of Plumbing and Mechanical Officials (IAPMO)
